| Place of Origin: | china |
| Marca: | TB |
| Certificação: | ISO9001 |
| Número do modelo: | S121 |
| Quantidade de ordem mínima: | 20 unidades |
|---|---|
| Preço: | $100/pack |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 5-8 dias |
| Termos de pagamento: | L/C, D/A, T/T, D/P, Western Union |
| Habilidade da fonte: | 10000 pacotes/mês |
| Material da junta: | NBR, EPDM, Viton | Tipo de placa: | Permutador de calor da placa da gaxeta |
|---|---|---|---|
| Comprimento da placa: | 1000mm | Modelo: | Placa de trocador de calor |
| Tamanho da conexão: | DN50 | Pressão máxima de trabalho: | 1,6 MPa |
| Peso: | Depende do tamanho, normalmente de 5 a 50 kg | Pressão máxima de operação: | 25 barras |

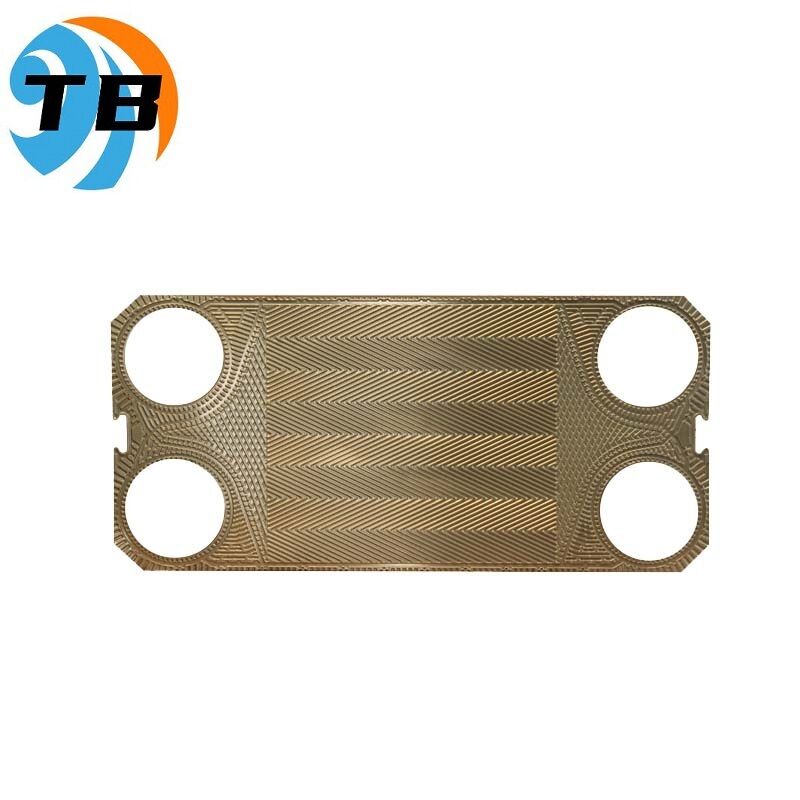

The Sondex heat exchanger plate is a high-quality component designed for efficient thermal transfer in various industrial applications. Known for its robust construction and reliable performance, the Sondex fluid heat exchange plate is engineered to meet the demanding requirements of modern heat exchange systems. With plate thicknesses ranging from 0.4 mm to 1.2 mm, these plates offer versatility to accommodate different heat transfer needs and operating conditions, ensuring optimal efficiency and durability.
Manufactured using premium stainless steel, the Sondex heat exchanger plate guarantees excellent corrosion resistance and long service life, even when exposed to harsh environments or aggressive fluids. This stainless steel material not only enhances the structural integrity of the plates but also promotes superior heat conductivity, making it an ideal choice for industries such as chemical processing, HVAC, food and beverage, and power generation.
The Sondex industrial heat plate is designed as a gasket plate heat exchanger, which means it features a series of corrugated plates sealed with high-quality gaskets to create separate flow channels. This design facilitates effective heat transfer between two fluids while preventing mixing. The gasket materials used in these plates include NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and Viton, each selected for their excellent sealing properties and resistance to various chemicals and temperatures. This range of gasket materials ensures that the Sondex heat exchanger plate can be customized to suit specific fluid characteristics and operating conditions.
With a maximum working pressure of 1.6 MPa, the Sondex fluid heat exchange plate is capable of handling high-pressure systems safely and efficiently. This pressure rating makes it suitable for a wide array of applications where reliable and stable operation under pressure is critical. Whether used in cooling, heating, or heat recovery processes, the Sondex heat exchanger plate delivers consistent performance, helping industries maintain energy efficiency and reduce operational costs.
One of the key advantages of the Sondex heat exchanger plate is its modular design, which allows easy assembly, disassembly, and maintenance. This feature simplifies cleaning and inspection procedures, reducing downtime and enhancing overall system reliability. Furthermore, the plates’ corrugated pattern increases turbulence within the fluid channels, significantly improving heat transfer rates compared to flat plate designs.
In summary, the Sondex heat exchanger plate is a versatile and durable solution for fluid heat exchange applications. Its combination of stainless steel construction, gasket plate design, customizable gasket materials, and reliable pressure handling capacity makes it an excellent choice for industries seeking efficient and long-lasting heat exchange components. By incorporating the Sondex industrial heat plate into your system, you ensure enhanced thermal performance, operational safety, and ease of maintenance, all of which contribute to improved process efficiency and reduced lifecycle costs.
| Model | Heat Exchanger Plate |
| Weight | Depends On Size, Typically 5 To 50 Kg |
| Plate Material | Stainless Steel |
| Material | Stainless Steel (AISI 316, AISI 304) |
| Gasket Material | NBR, EPDM, Viton |
| Plate Thickness | 0.4 Mm To 1.2 Mm |
| Plate Type | Chevron Pattern |
| Connection Size | DN50 |
| Max Operating Pressure | 25 Bar |
| Max Operating Temperature | 225°C |
The Sondex heat exchanger plate, model S17, manufactured by the reputable TB brand in China, is a high-performance gasket plate heat exchanger designed to meet diverse industrial needs. Certified with ISO9001, this product ensures quality and reliability in every application. Featuring a plate thickness ranging from 0.4 mm to 1.2 mm and a plate length of 1000mm, the Sondex plate heat exchanger is engineered with a distinctive chevron pattern plate type that optimizes heat transfer efficiency and durability.
The Sondex heat exchanger plate is widely used across various industries due to its robust design and versatility. In the HVAC sector, it plays a critical role in heating and cooling systems, providing efficient thermal exchange in air conditioning units, refrigeration, and heat recovery systems. Its compact size and high heat transfer coefficient make it ideal for space-constrained environments while maintaining excellent performance.
In the food and beverage industry, the Sondex heat exchanger plate ensures sanitary and efficient heat transfer processes. It is commonly applied in pasteurization, sterilization, and cooling of liquids, where maintaining product quality and hygiene is paramount. The reliable gasket system prevents cross-contamination, making it a trusted choice for food-grade applications.
The chemical and pharmaceutical industries also benefit from the Sondex heat exchanger plate's corrosion resistance and adaptability. It effectively handles aggressive fluids and varying temperatures, facilitating processes such as heating, cooling, condensation, and evaporation. Its modular design allows for easy maintenance and scalability, catering to complex processing requirements.
Moreover, the Sondex heat exchanger plate finds applications in power generation, marine, and oil & gas sectors. It supports efficient heat recovery, waste heat utilization, and temperature control in engines, turbines, and reactors. Its durability under harsh operational conditions ensures long-term service and minimal downtime.
Overall, the Sondex heat exchanger plate by TB stands out as a reliable solution for a broad spectrum of heat exchange applications. Whether it's industrial manufacturing, energy systems, or food processing, the Sondex heat exchanger plate offers exceptional performance, quality assurance through ISO9001 certification, and a design optimized by the chevron pattern plate type. Its adaptability and efficiency make it an indispensable component in modern heat transfer technology.
Our TB S17 Sondex heat exchanger plate offers exceptional customization services to meet your specific requirements. Manufactured in China and certified with ISO9001, this gasket plate heat exchanger features a durable Chevron Pattern plate type, ensuring efficient heat transfer and reliability.
The Sondex stainless steel heat plate is designed to operate at a maximum temperature of 225°C and withstand pressures up to 25 Bar, with plate thickness options ranging from 0.4 mm to 1.2 mm. This flexibility allows for tailored solutions suitable for a variety of industrial applications.
Whether you need a Sondex cooling plate exchanger or a Sondex compact heat exchanger plate, our customization services ensure optimal performance and compatibility with your system. Trust TB’s S17 model to deliver high-quality, efficient heat exchange tailored to your needs.
