| Place of Origin: | china |
| Marca: | TB |
| Certificação: | ISO9001 |
| Número do modelo: | H17 |
| Quantidade de ordem mínima: | 20 unidades |
|---|---|
| Preço: | $100/pack |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 5-8 dias |
| Termos de pagamento: | L/C, D/A, T/T, D/P, Western Union |
| Habilidade da fonte: | 10000 pacotes/mês |
| Aplicativo: | HVAC, Alimentos e Bebidas, Processamento Químico | Design de placa: | De peso superior a 200 g/m2, mas não superior a 200 g/m2 |
|---|---|---|---|
| PlateThickness: | 0.4 - 1,2 MILÍMETROS | Material da junta: | EPDM |
| TipoPlaca: | Padrão Chevron | Pressão máxima de operação: | 25 barras |
| Pressão máxima de trabalho: | Barra 13 | Certificações: | ISO9001, CE, UL |

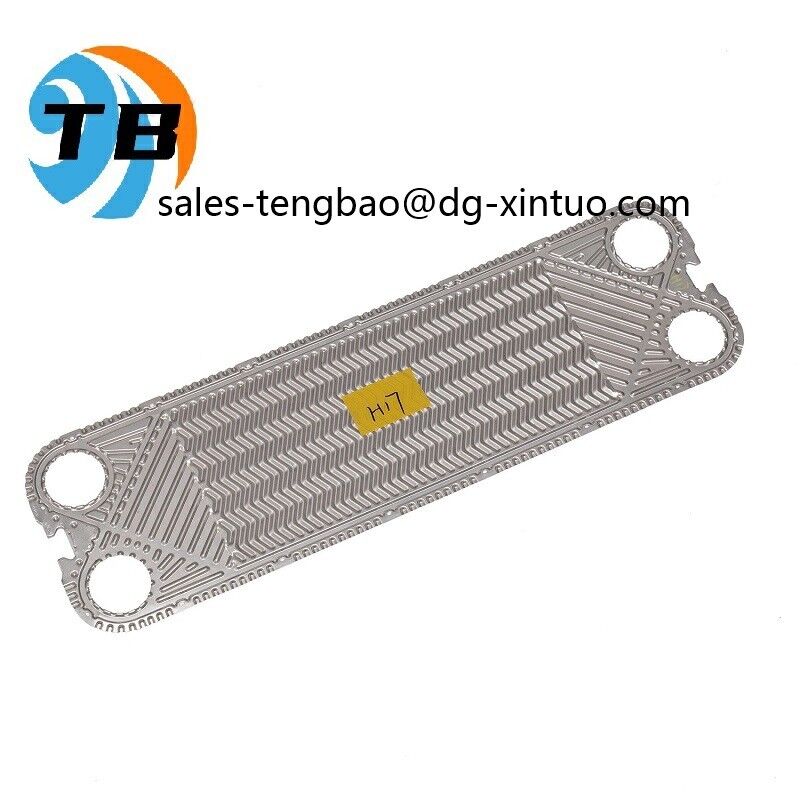

The APV Compact Plate Heat Exchanger is a high-performance solution designed for efficient heat transfer in various industrial applications. With its robust construction and advanced engineering, this heat exchanger plate offers exceptional durability and reliability, making it an ideal choice for processes requiring precise temperature control and energy efficiency.
One of the standout features of the APV Stainless Steel Plate Heat Exchanger is its impressive plate dimensions, measuring 2544*984mm in width. This size allows for a substantial heat transfer surface area, optimizing the exchanger's capacity to handle significant thermal loads. The large plate width contributes to enhanced heat exchange efficiency, ensuring that the system operates at peak performance even under demanding conditions.
Engineered to withstand challenging operating environments, the APV Gasketed Plate Heat Exchanger boasts a maximum working pressure of 13 Bar. This high-pressure tolerance ensures safe and dependable operation across a wide range of applications, from food processing and pharmaceuticals to HVAC and chemical industries. The ability to operate at elevated pressures without compromising performance underscores the durability and engineering excellence inherent in APV heat exchanger plates.
The plate type employed in this heat exchanger is the Chevron Pattern, a design renowned for its superior heat transfer capabilities and mechanical strength. The Chevron Pattern creates turbulent flow paths for the fluids, which significantly enhances heat transfer efficiency by minimizing the boundary layer effect. This design also reduces fouling and pressure drop, contributing to lower maintenance costs and prolonged service life. The enhanced turbulence generated by the Chevron Pattern ensures that heat exchange occurs rapidly and uniformly across the plate surface.
Manufactured with precision and strict adherence to quality standards, the APV Compact Plate Heat Exchanger carries multiple certifications, including ISO9001, CE, and UL. These certifications are a testament to the product’s compliance with international quality, safety, and environmental standards. ISO9001 certification guarantees that the manufacturing process follows rigorous quality management principles, while CE marking confirms conformity with European health, safety, and environmental protection standards. The UL certification further attests to the product’s safety and reliability, particularly for use in North American markets.
The APV Stainless Steel Plate Heat Exchanger is particularly valued for its use of high-grade stainless steel materials, which offer excellent corrosion resistance, mechanical strength, and hygienic properties. This makes it suitable for applications in the food and beverage industry, pharmaceuticals, and other sectors where cleanliness and resistance to aggressive fluids are critical. The stainless steel construction also ensures longevity and reduces the risk of contamination, maintaining product integrity throughout the heat exchange process.
The gasketed design of the APV Gasketed Plate Heat Exchanger provides additional advantages by allowing easy disassembly for inspection, cleaning, and maintenance. This modularity ensures that operators can maintain optimal performance with minimal downtime, extending the operational lifespan of the equipment. Gaskets are made from durable materials compatible with various fluids and temperatures, ensuring leak-free operation and reliability under diverse conditions.
In summary, the APV Compact Plate Heat Exchanger combines advanced design, superior materials, and certified quality standards to deliver outstanding heat transfer performance. Its large plate width of 2544*984mm, maximum working pressure of 13 Bar, Chevron Pattern plate type, and comprehensive certifications position it as a premier choice for industries seeking efficient and reliable heat exchange solutions. Whether used as an APV Stainless Steel Plate Heat Exchanger or an APV Gasketed Plate Heat Exchanger, this product exemplifies excellence in heat exchanger technology, meeting the demanding needs of modern industrial processes.
| Type | Heat Exchanger Plate |
| Weight | Depends On Model And Size |
| Gasket Material | NBR, EPDM, Or Viton (Standard: EPDM) |
| Plate Thickness | 0.4 - 1.2 Mm (Typical: 0.5 Mm) |
| Plate Type | Chevron Pattern |
| Max Operating Temperature | 225°C |
| Max Operating Pressure | 25 Bar |
| Certifications | ISO9001, CE, UL |
The APV High Efficiency Plate Heat Exchanger, model A145 by TB, is a premium heat exchanger plate product originating from China. Renowned for its robust construction and high performance, this product is certified with ISO9001, CE, and UL standards, ensuring superior quality and reliability. Designed to operate under a maximum operating pressure of 25 bar, the APV High Efficiency Plate Heat Exchanger is equipped with EPDM gasket material, which provides excellent resistance to heat, chemicals, and wear, making it suitable for a wide range of applications.
The APV High Efficiency Plate Heat Exchanger is widely used across various industries due to its efficient heat transfer capabilities. It is ideally suited for HVAC systems where efficient heating and cooling are essential, such as in commercial buildings, industrial plants, and data centers. The heat exchanger plates allow for compact installation and easy maintenance, making them perfect for scenarios requiring space optimization and minimal downtime.
In the food and beverage industry, the APV High Efficiency Plate Heat Exchanger plays a critical role in pasteurization, sterilization, and temperature control processes. Its hygienic design and EPDM gasket ensure that the heat exchanger maintains sanitary conditions, which is crucial for processing consumable goods. Additionally, the product's adaptability to different sizes and weights depending on the model allows it to cater to both small-scale and large-scale operations.
The chemical and pharmaceutical sectors also benefit from the APV High Efficiency Plate Heat Exchanger, where precise temperature control is necessary to maintain product integrity and safety. The product’s capability to withstand high pressures up to 25 bar makes it suitable for handling aggressive fluids and demanding process conditions. Furthermore, the APV High Efficiency Plate Heat Exchanger is often employed in energy recovery systems, where it helps improve energy efficiency by transferring heat between fluids without direct contact.
Overall, the TB brand’s APV High Efficiency Plate Heat Exchanger model A145 is a versatile and reliable solution for a broad spectrum of heat exchange applications. Its certifications, durable EPDM gasket material, and ability to operate at high pressures make it an excellent choice for environments requiring high efficiency, safety, and compliance. Whether used in industrial manufacturing, food processing, HVAC, or energy sectors, this heat exchanger plate product consistently delivers outstanding performance and longevity.
TB offers customized APV Plate Heat Exchanger solutions with model number A145, designed to meet diverse industrial needs. Manufactured in China, our heat exchanger plates are certified by ISO9001, ensuring high quality and reliability. The APV Brazed Plate Heat Exchanger features a maximum operating pressure of 25 Bar, with a plate thickness of 0.5 mm and plate dimensions of 2544*984 mm.
We provide flexible plate design options including gasketed or welded configurations to suit various applications. Our APV Stainless Steel Plate Heat Exchanger is engineered for durability and exceptional performance, making it an ideal choice for efficient heat transfer in demanding environments.
With TB’s product customization services, clients can tailor the APV heat exchanger plate to specific operational requirements, ensuring optimal efficiency and longevity in their thermal management systems.
APV heat exchanger plates are designed to provide efficient thermal transfer in various industrial applications. Our technical support team is dedicated to assisting customers with installation, operation, and maintenance to ensure optimal performance and longevity of the product.
For installation, it is essential to follow the recommended guidelines regarding gasket placement, plate alignment, and tightening sequences. Proper installation will prevent leaks and maximize heat transfer efficiency.
During operation, regularly monitor pressure and temperature to stay within the specified limits of the heat exchanger. This helps avoid damage and ensures consistent performance.
Maintenance services include routine inspection and cleaning of the plates to remove fouling and deposits that can reduce heat transfer efficiency. Our team can provide advice on suitable cleaning methods, including chemical cleaning procedures compatible with APV plates.
In case of any technical issues or for spare parts replacement, our support team is available to provide expert guidance to minimize downtime and maintain continuous operation of your APV heat exchanger.
