| Place of Origin: | china |
| Marca: | TB |
| Certificação: | ISO9001 |
| Número do modelo: | Tr9gn |
| Quantidade de ordem mínima: | 20 unidades |
|---|---|
| Preço: | $100/pack |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 5-8 dias |
| Termos de pagamento: | L/C, D/A, T/T, D/P, Western Union |
| Habilidade da fonte: | 10000 pacotes/mês |
| Temperatura máxima de operação: | 225°C | TipoPlaca: | Padrão Chevron |
|---|---|---|---|
| Espessura da placa: | 0,5 mm | Largura da Placa: | 2544*984mm |
| Material da junta: | EPDM | PlateThickness: | 0.4 - 1,2 MILÍMETROS |
| Peso: | Depende do modelo e do tamanho | Tipo: | Placa de trocador de calor |
The APV Corrugated Plate Heat Exchanger is a highly efficient and reliable solution designed to meet the demanding requirements of various industries, including HVAC, Food & Beverage, and Chemical Processing. Engineered with precision, this heat exchanger features a plate thickness of 0.5 mm, which ensures optimal heat transfer performance while maintaining structural integrity under rigorous operating conditions.
One of the standout features of the APV Corrugated Plate Heat Exchanger is its ability to operate at a maximum temperature of 225°C, making it suitable for a wide range of thermal applications. This high-temperature capability allows it to handle processes that involve significant heat exchange without compromising safety or efficiency. Additionally, the heat exchanger is designed to withstand a maximum operating pressure of 25 bar, ensuring robust performance even in high-pressure environments commonly found in industrial settings.
The gasket material used in the APV Corrugated Plate Heat Exchanger is EPDM (ethylene propylene diene monomer), which is known for its excellent resistance to heat, ozone, and various chemicals. EPDM gaskets provide reliable sealing, preventing leaks and maintaining the integrity of the heat exchanger during prolonged operation. This gasket material is especially advantageous in applications involving water, steam, and certain chemicals, making the APV heat exchanger an excellent choice for diverse process conditions.
The corrugated design of the plates significantly enhances the heat transfer efficiency by increasing the turbulence of the fluids passing through the heat exchanger. This design maximizes the surface area available for heat exchange, leading to improved thermal performance and energy savings. The APV High Efficiency Plate Heat Exchanger is thus capable of delivering superior heat transfer rates compared to traditional heat exchangers, making it a preferred choice for industries aiming to optimize their thermal processes.
In HVAC applications, the APV Corrugated Plate Heat Exchanger provides efficient heat recovery and temperature control, contributing to energy conservation and reduced operational costs. Its compact design and high efficiency make it ideal for use in heating, ventilation, and air conditioning systems where space is limited and performance is critical.
In the Food & Beverage industry, hygiene and safety are paramount. The APV Corrugated Plate Heat Exchanger is designed to meet stringent sanitary standards, ensuring that it can be used safely in processes involving dairy products, beverages, and other food items. The use of EPDM gaskets also ensures compatibility with food-grade processes, preventing contamination and maintaining product quality.
Chemical Processing applications often involve aggressive fluids and demanding operating conditions. The robust construction and chemical resistance of the APV Corrugated Plate Heat Exchanger make it suitable for handling various chemical substances, providing reliable heat transfer while withstanding corrosive environments. Its ability to operate at high pressures and temperatures adds to its versatility in chemical manufacturing and processing plants.
Overall, the APV Corrugated Plate Heat Exchanger combines advanced engineering, durable materials, and innovative design to deliver a heat exchange solution that meets the highest standards of performance and reliability. Whether used in HVAC systems, food and beverage production, or chemical processing, this heat exchanger offers exceptional efficiency, durability, and operational safety. Its compact size, high heat transfer rates, and robust construction make it an indispensable component in modern thermal management systems.
Choosing the APV High Efficiency Plate Heat Exchanger means investing in a product that not only meets but exceeds industry expectations for heat exchange performance. With its 0.5 mm plate thickness, EPDM gasket material, and capability to operate at up to 225°C and 25 bar, it stands out as a top-tier solution for a wide range of applications. This makes the APV Corrugated Plate Heat Exchanger an excellent choice for companies seeking to enhance their process efficiency, reduce energy consumption, and maintain high standards of safety and reliability.
| Type | Heat Exchanger Plate |
| Weight | Depends On Model And Size |
| Heat Transfer Coefficient | Up To 5000 W/m²K |
| Max Operating Temperature | 225°C |
| Plate Design | Gasketed Or Welded |
| Gasket Material | NBR, EPDM, Or Viton |
| Plate Width | 2544*984mm |
| Plate Thickness | 0.4 - 1.2 mm |
| Max Operating Pressure | 25 Bar |
| Application | HVAC, Food & Beverage, Chemical Processing |

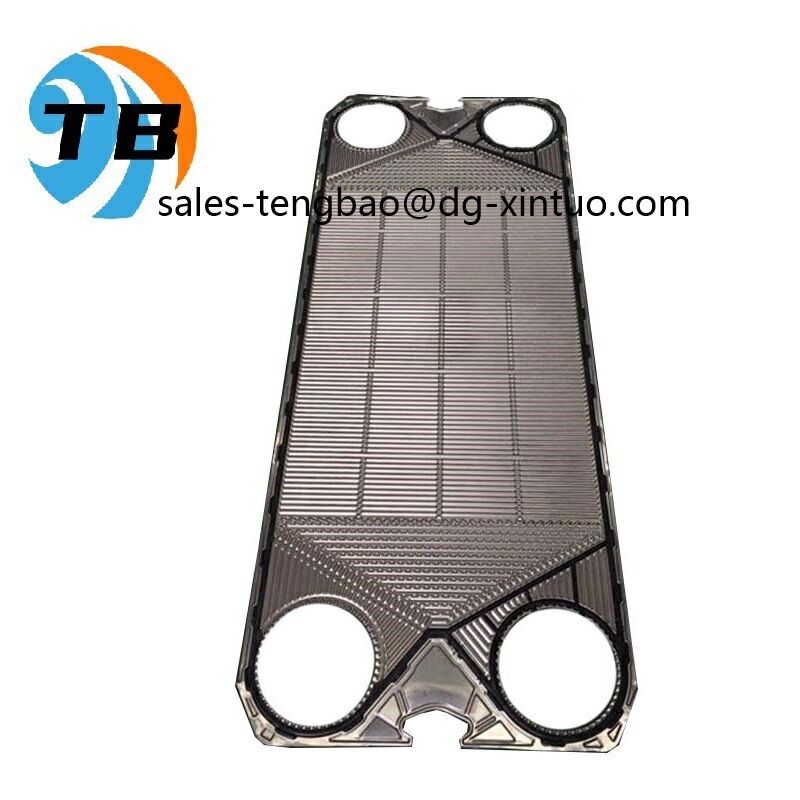

The TB brand APV heat exchanger plate, model number A145, is a high-performance component originating from China and certified under ISO9001, ensuring superior quality and reliability. This advanced plate is designed for use in APV Gasketed Plate Heat Exchangers, APV Corrugated Plate Heat Exchangers, and APV Compact Plate Heat Exchangers, making it a versatile choice for a wide range of industrial and commercial applications. The plate thickness ranges from 0.4 to 1.2 mm, allowing customization based on the specific thermal and mechanical requirements of the system.
One of the primary application occasions for the TB A145 heat exchanger plate is in industries requiring efficient heat transfer with limited space. Its high heat transfer coefficient of up to 5000 W/m²K makes it ideal for scenarios where rapid thermal exchange is critical, such as in food processing, pharmaceuticals, chemical manufacturing, and HVAC systems. The compact design and corrugated pattern of the APV plates enhance turbulence and improve thermal performance, which is essential in processes that demand consistent and efficient temperature control.
In addition to industrial processing, the TB APV Corrugated Plate Heat Exchanger plates are well-suited for energy recovery systems and district heating applications, where space-saving and energy efficiency are paramount. Their gasket materials—available in NBR, EPDM, or Viton—offer excellent chemical resistance and durability, allowing them to operate reliably under various temperature and pressure conditions. This versatility extends the usability of APV plates in scenarios involving aggressive fluids or fluctuating temperatures.
The large plate width of 2544*984 mm offers flexibility in designing heat exchanger units to accommodate different flow rates and capacities. The weight of each plate depends on the specific model and size, providing users with options tailored to their equipment needs. These plates are commonly used in maintenance and upgrade projects where replacing individual plates can significantly enhance the overall system performance without the need for complete equipment replacement.
Overall, the TB APV Gasketed Plate Heat Exchanger plates are indispensable in applications demanding compact, efficient, and reliable heat exchange solutions. Whether used in APV Compact Plate Heat Exchangers or APV Corrugated Plate Heat Exchangers, the A145 model ensures optimal performance across various scenarios, from industrial manufacturing to energy systems, making it a trusted component in modern heat exchanger technology.
TB brand offers the APV Gasketed Plate Heat Exchanger model A145, proudly manufactured in China with ISO9001 certification to ensure the highest quality standards. This APV Plate Heat Exchanger features a durable chevron pattern plate design with a thickness of 0.5 mm, optimized for efficient heat transfer.
Our APV Plate Heat Exchanger is customizable to meet the specific needs of various industries including HVAC, Food & Beverage, and Chemical Processing. The gasket material used is high-quality EPDM, providing excellent sealing performance and chemical resistance.
Choose TB’s APV Gasketed Plate Heat Exchanger for reliable and efficient heat exchange solutions tailored to your application requirements.
APV heat exchanger plates are designed to provide efficient and reliable thermal performance in a wide range of industrial applications. Our technical support team is dedicated to helping you optimize the operation and maintenance of your heat exchanger to ensure maximum uptime and longevity.
We offer comprehensive services including installation guidance, troubleshooting assistance, and routine maintenance recommendations. Our experts can assist with selecting the appropriate plate materials and gaskets to match your process requirements and operating conditions.
For maintenance, we provide detailed instructions on cleaning procedures, gasket replacement, and inspection routines to prevent leaks and maintain optimal heat transfer efficiency. We also supply genuine APV spare parts to guarantee compatibility and performance.
In the event of operational issues, our technical support team is available to analyze performance data, identify potential problems, and recommend corrective actions. We strive to minimize downtime and ensure your heat exchanger operates at peak efficiency.
Additionally, APV offers training programs and documentation to empower your staff with the knowledge needed to properly operate and maintain your heat exchanger plates. Our commitment is to support your process reliability and productivity through expert technical service.
