| Place of Origin: | china |
| Marca: | TB |
| Certificação: | ISO9001 |
| Número do modelo: | SR3 |
| Quantidade de ordem mínima: | 20 unidades |
|---|---|
| Preço: | $100/pack |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 5-8 dias |
| Termos de pagamento: | L/C, D/A, T/T, D/P, Western Union |
| Habilidade da fonte: | 10000 pacotes/mês |
| Peso: | Depende do modelo e do tamanho | TipoPlaca: | Padrão Chevron |
|---|---|---|---|
| Certificações: | ISO9001, CE, UL | Material da junta: | EPDM |
| Temperatura máxima de operação: | 225°C | Espessura da placa: | 0,5 mm |
| Material da junta: | NBR, EPDM ou Viton | Coeficiente de transferência de calor: | Até 5.000 W/m²K |

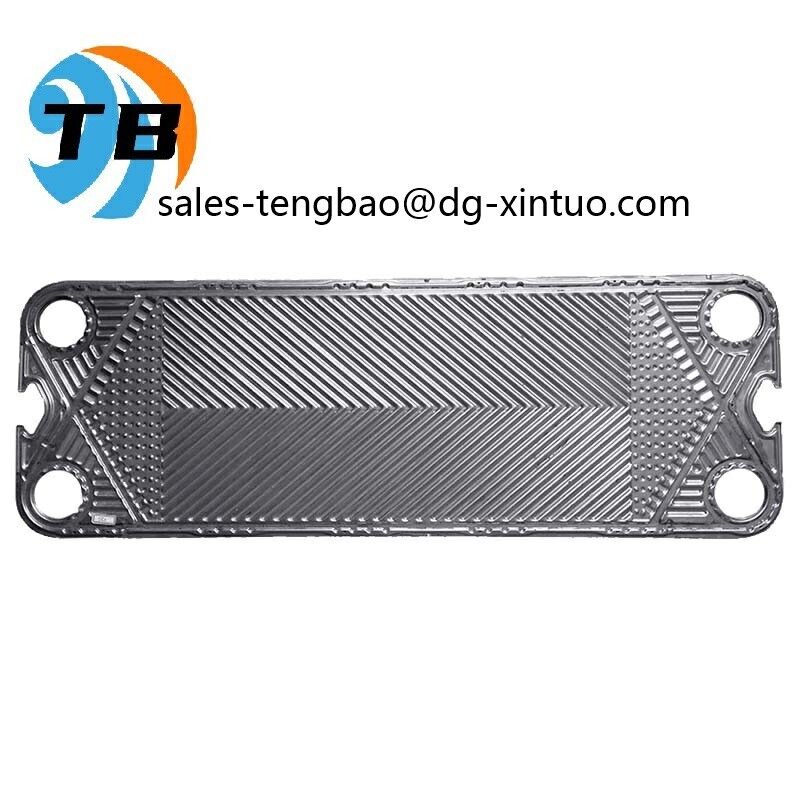

The APV heat exchanger plate is an essential component designed to optimize heat transfer efficiency in various industrial applications. Featuring a distinctive Chevron Pattern plate type, this design ensures maximum turbulence and excellent heat transfer performance, making it a reliable choice for a wide range of processes. The Chevron Pattern enables the plates to create a strong turbulence effect in the fluids passing through, which significantly enhances thermal exchange while minimizing fouling and pressure drop.
The APV Compact Plate Heat Exchanger plates are manufactured with precision, and the plate thickness typically ranges from 0.4 mm up to 1.2 mm, allowing them to be tailored to specific operational requirements. The standard plate thickness for many models is 0.5 mm, providing a balanced combination of strength and heat transfer efficiency. The flexibility in plate thickness makes it possible to accommodate different process fluids and operating conditions, ensuring durability and consistent performance over time.
Depending on the specific model and size, the weight of the APV heat exchanger plates varies accordingly. This adaptability allows engineers and designers to select the most suitable plate configuration for their system, optimizing both mechanical strength and thermal efficiency. The compact construction of the APV Compact Plate Heat Exchanger facilitates easier installation and maintenance, as well as a smaller footprint compared to traditional shell and tube heat exchangers.
One of the critical technical specifications of the APV heat exchanger plate is its maximum working pressure, which is rated at 13 bar. This high-pressure tolerance ensures safe and reliable operation under demanding industrial conditions, such as in chemical processing, food and beverage production, HVAC systems, and other sectors requiring efficient thermal management. The ability to withstand pressures up to 13 bar means the APV Brazed Plate Heat Exchanger can be deployed in applications with high fluid velocities and temperature variations without compromising its structural integrity.
The APV Brazed Plate Heat Exchanger is particularly renowned for its brazed construction, which enhances durability and leak resistance. This design eliminates the need for gaskets, making it suitable for handling aggressive fluids and high-pressure applications where gasketed designs may fall short. Combining the brazed design with the Chevron Pattern plates results in a highly efficient, compact, and robust heat exchanger solution that is widely used across multiple industries.
Furthermore, the modular design of the APV Compact Plate Heat Exchanger allows for easy scaling and maintenance. The plates can be added or removed in response to changing process requirements, providing flexibility and cost-effectiveness. The Chevron Pattern not only improves heat transfer but also contributes to the mechanical strength of the plate pack, ensuring long service life and reduced downtime.
In summary, the APV heat exchanger plate with its Chevron Pattern design, variable plate thickness ranging from 0.4 mm to 1.2 mm, and maximum working pressure of 13 bar offers a versatile and efficient solution for heat transfer needs. Its weight varies with model and size, making it adaptable to diverse operational environments. Whether integrated into an APV Compact Plate Heat Exchanger or an APV Brazed Plate Heat Exchanger, these plates deliver superior thermal performance, durability, and compactness, meeting the rigorous demands of modern industrial processes.
| Type | Heat Exchanger Plate |
| Plate Design | Gasketed or Welded |
| Gasket Material | NBR, EPDM, or Viton |
| Heat Transfer Coefficient | Up to 5000 W/m²K |
| Max Operating Pressure | 25 Bar |
| Max Operating Temperature | 225°C |
| Plate Width | 2544*984 mm |
| Plate Thickness | 0.4 - 1.2 mm |
| Certifications | ISO9001, CE, UL |
The TB brand APV Plate Heat Exchanger, model number A145, originating from China, is a highly efficient and reliable solution designed to meet diverse heat transfer requirements across various industries. Certified with ISO9001, CE, and UL standards, this product ensures superior quality and safety compliance, making it an ideal choice for demanding applications. With a plate thickness of 0.5 mm and a heat transfer coefficient reaching up to 5000 W/m²K, the APV Plate Heat Exchanger delivers exceptional thermal performance, whether in gasketed or welded plate design configurations.
The APV Plate Heat Exchanger is suitable for multiple application occasions and scenarios. In the HVAC industry, it is extensively used for heating, cooling, and heat recovery processes, providing energy-efficient solutions for commercial buildings, industrial plants, and residential complexes. The high-performance heat transfer capabilities ensure optimal temperature regulation, reducing energy consumption and operational costs.
In food and beverage processing, the APV Brazed Plate Heat Exchanger is indispensable for pasteurization, sterilization, and temperature control of liquids, maintaining product quality and safety. Its gasket materials, including NBR, EPDM, or Viton, offer excellent chemical resistance and durability, catering to various hygienic and sanitary requirements.
Industrial manufacturing processes also benefit from the robust design of the APV Plate Heat Exchanger. It is widely utilized in chemical processing, pharmaceuticals, and power generation, where precise temperature control is critical. The brazed and gasketed designs allow for flexibility in installation and maintenance, adapting to different operational environments and fluid characteristics.
Additionally, the TB APV Plate Heat Exchanger is well-suited for marine and automotive applications, offering compact and efficient heat transfer solutions that save space and improve system reliability. Its versatility in handling different fluids and temperatures makes it a preferred choice for engineers and system designers worldwide.
Overall, the APV Plate Heat Exchanger, with its advanced plate design options, high heat transfer efficiency, and certified quality standards, is an excellent product for a wide range of heat exchange applications, ensuring performance, durability, and energy savings across various industries and scenarios.
TB brand A145 model APV Compact Plate Heat Exchanger is a high-quality heat exchanger plate product made in China, certified with ISO9001 to ensure reliable performance and durability.
This APV Stainless Steel Plate Heat Exchanger features a plate thickness of 0.5 mm and is designed to withstand a maximum working pressure of 13 bar, making it suitable for demanding industrial applications.
The gasket material used is EPDM, providing excellent sealing and chemical resistance, which enhances the longevity and efficiency of the heat exchanger.
Our APV Industrial Plate Heat Exchanger plates are widely used in HVAC systems, Food & Beverage processing, and Chemical Processing industries, offering efficient heat transfer and energy savings.
With TB's customization services, you can tailor the heat exchanger plates to meet your specific application requirements, ensuring optimal performance and integration into your systems.
The APV heat exchanger plate product is designed to provide efficient thermal transfer solutions across various industries including food processing, pharmaceuticals, and chemical manufacturing. Our technical support team is dedicated to assisting customers with installation, maintenance, and troubleshooting to ensure optimal performance and longevity of the heat exchanger plates.
We offer comprehensive services such as plate replacement, gasket renewal, and performance optimization to meet the specific needs of your application. Our experts can guide you through selecting the right plate type, size, and material to maximize heat transfer efficiency and minimize downtime.
Regular maintenance and inspection are crucial for sustaining the heat exchanger’s effectiveness. We provide detailed guidelines and support for cleaning procedures, leak detection, and preventive maintenance schedules tailored to your operational environment.
In addition, our technical support includes assistance with system design and upgrades, helping you enhance capacity or adapt to process changes. We are committed to delivering prompt and reliable support to minimize interruptions and maintain high productivity.
For any technical queries or service requests related to APV heat exchanger plates, our knowledgeable support team is available to provide expert advice and solutions ensuring that your equipment operates at peak efficiency throughout its service life.
